Design a set of furniture that is fluid within the space it is placed.
This project took place over the school year, that document is below. The images above were a redesign I have done to improve upon the design and think it out more thoroughly.

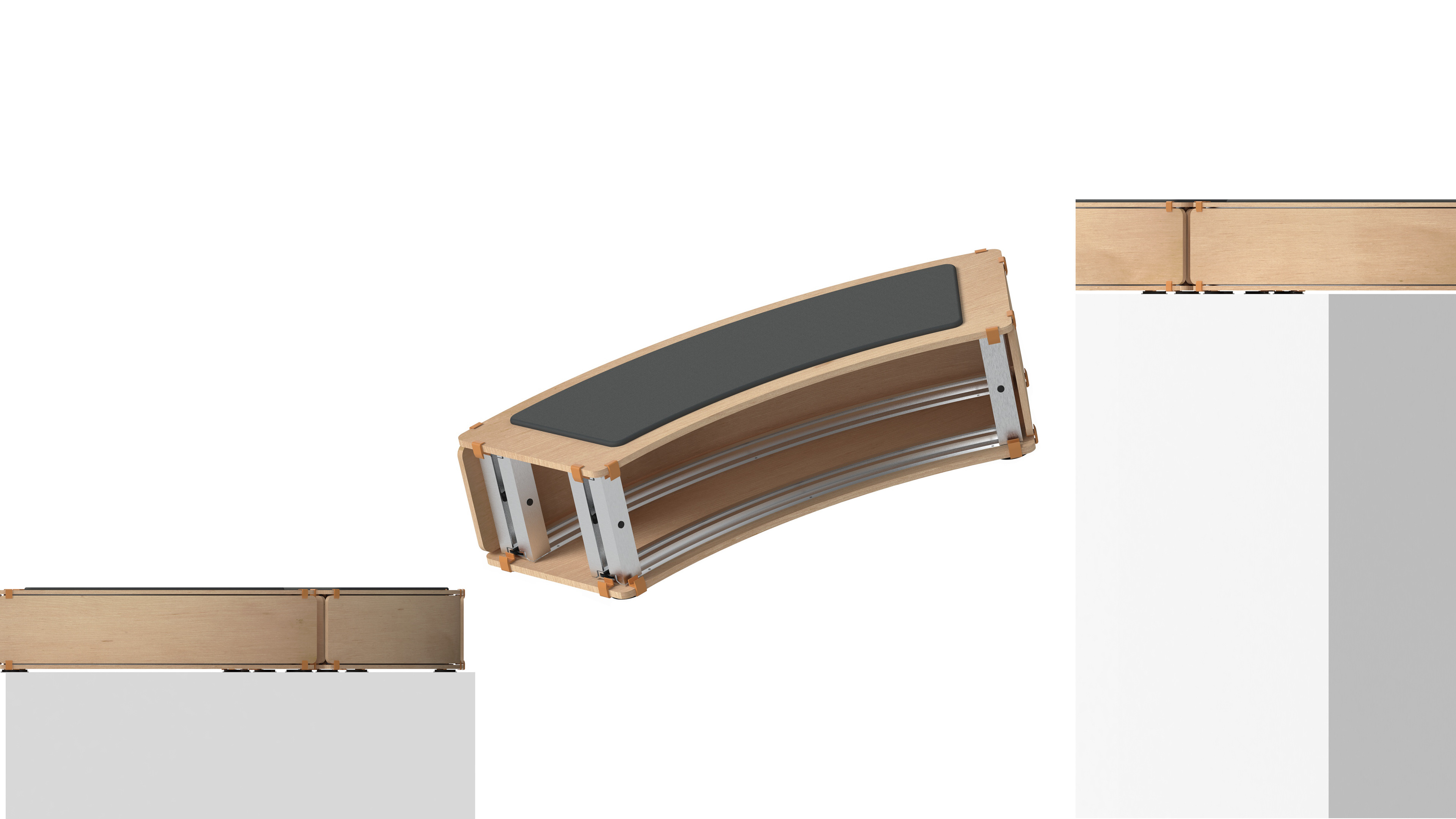

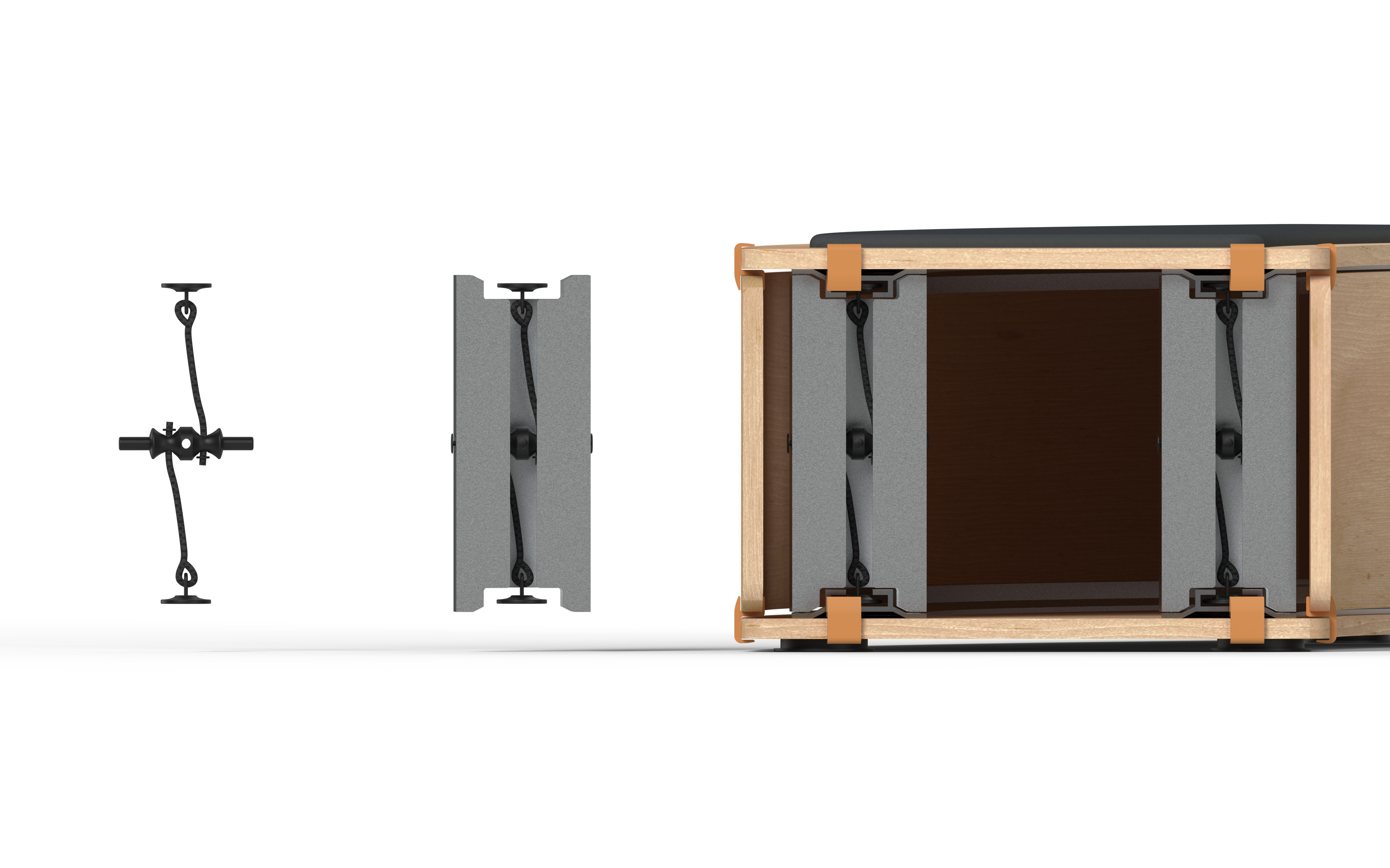

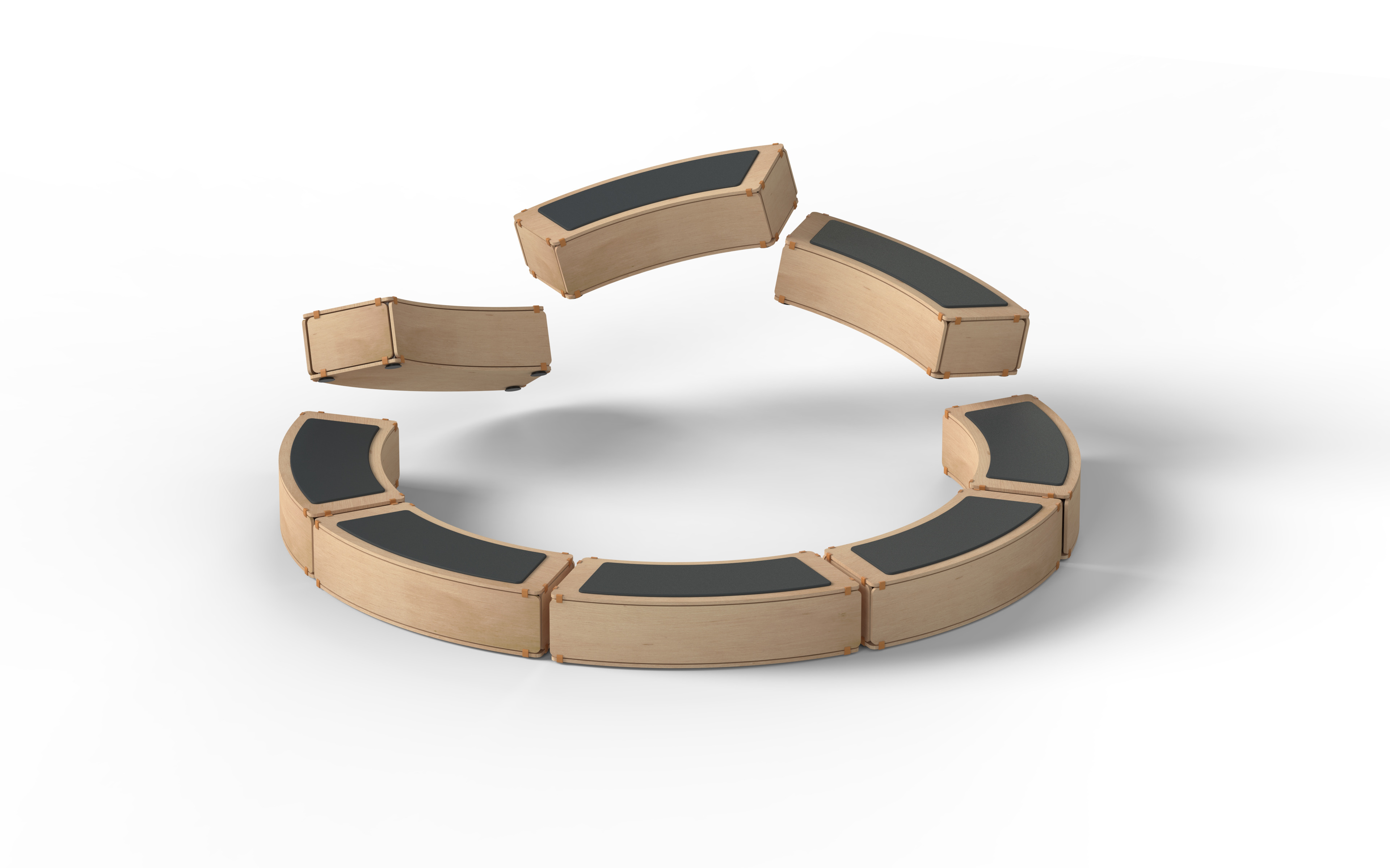

The whole circle is made up of eight pieces. Each piece is identical and uses a skeletal structure for support with wood paneling holding on the sides. Above you can see the structure inside. Below is a better look at the system that holds the top and bottom together.

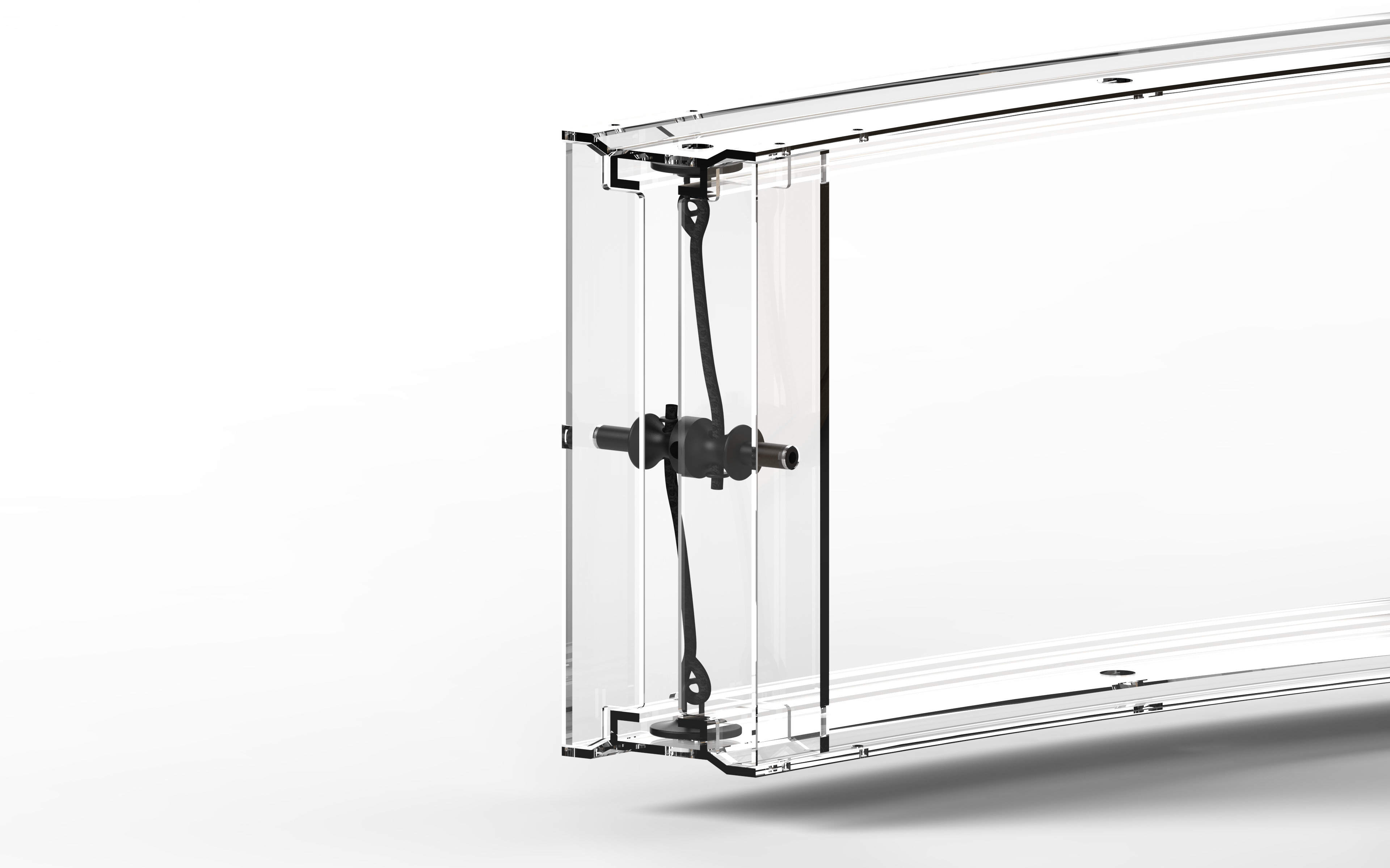

This internal render shows not only the skeletal structure of extruded metal pieces but also the easy-to-use system that allows them to be held together with nothing but tension. By using a lever, you either pull it up or down to twist the rod in the center of the metal piece. The rope will then be pulled and the rails will be held by the plastic plug that is attached to the rope. This can be easily assembled and disassembled.
One lever is included with each of the benches to cut down on tools and individual pieces.

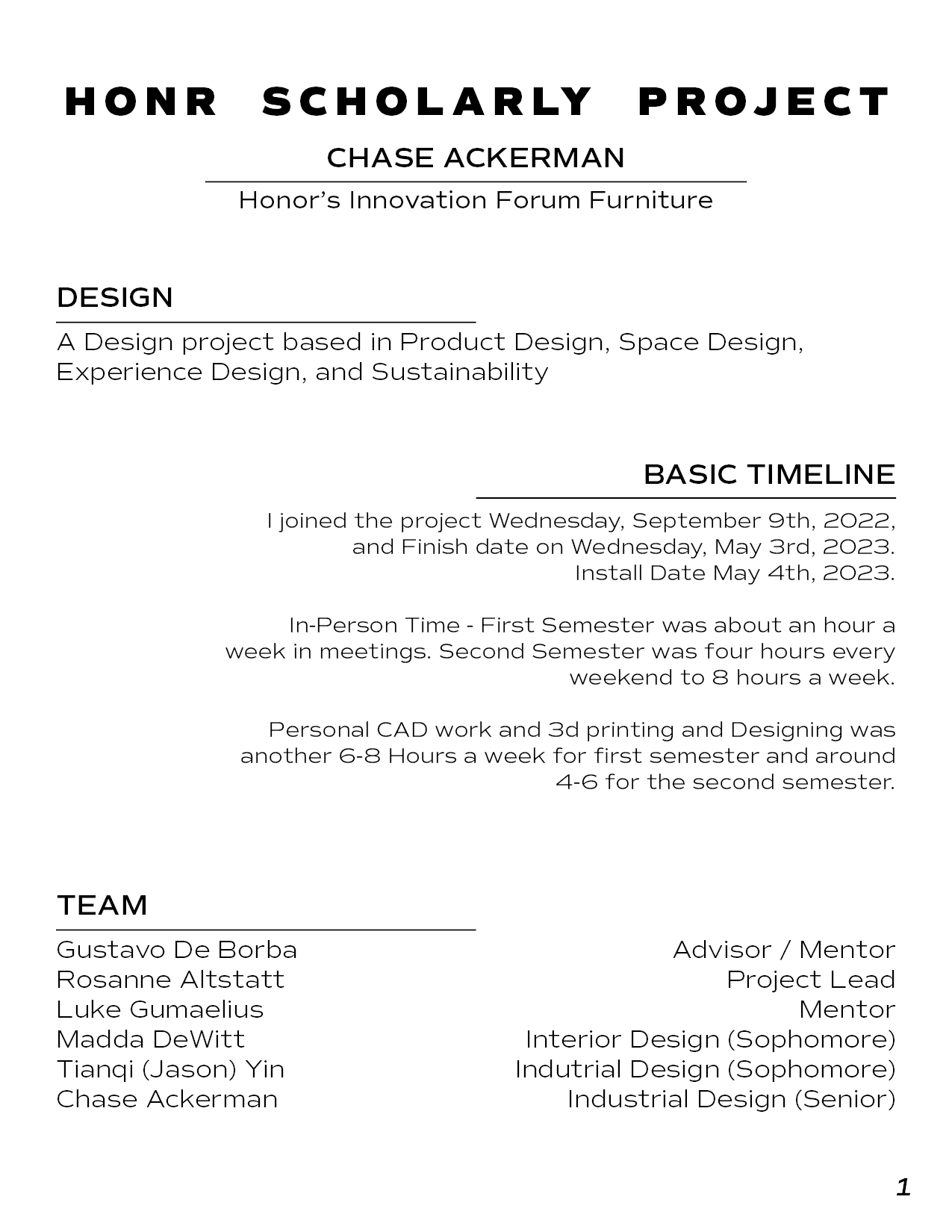

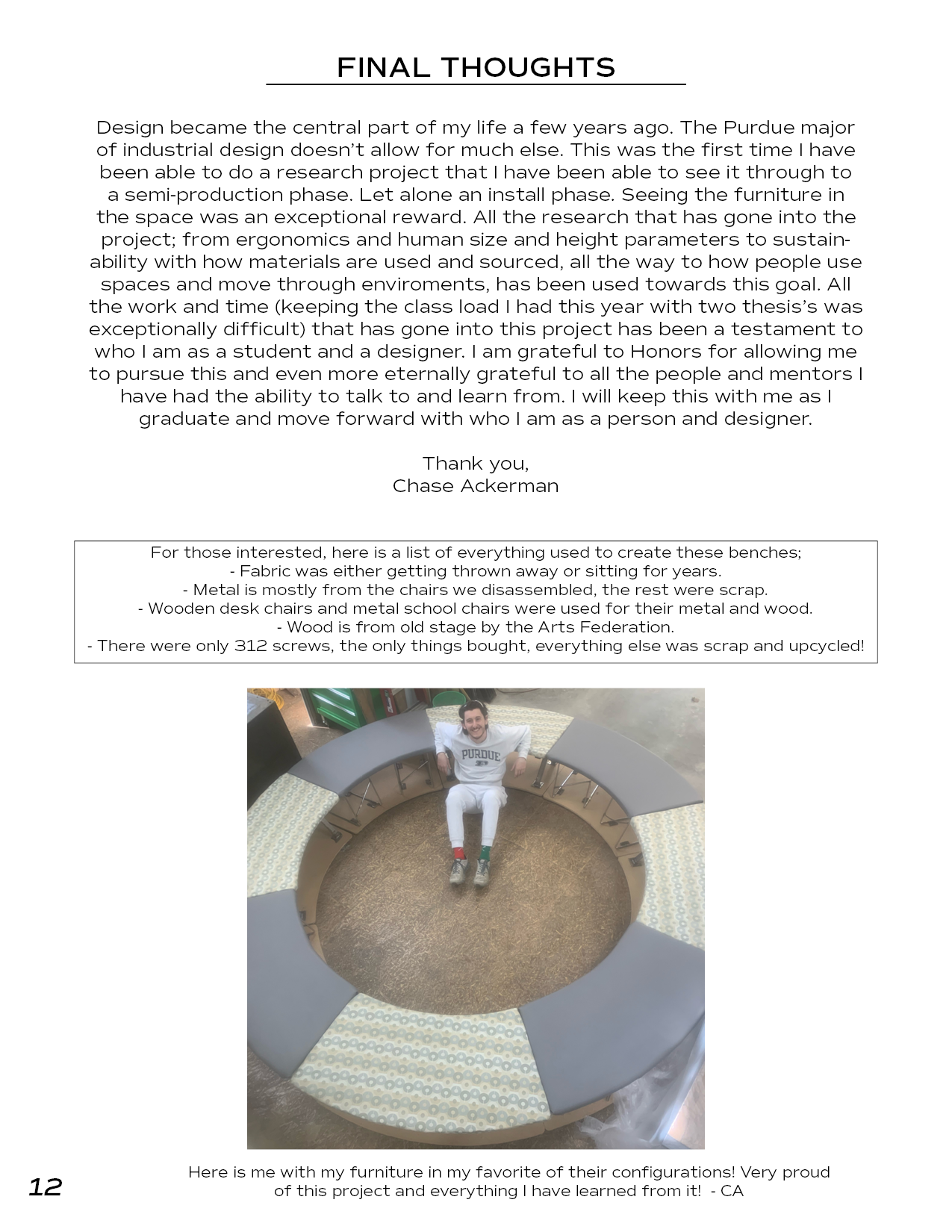

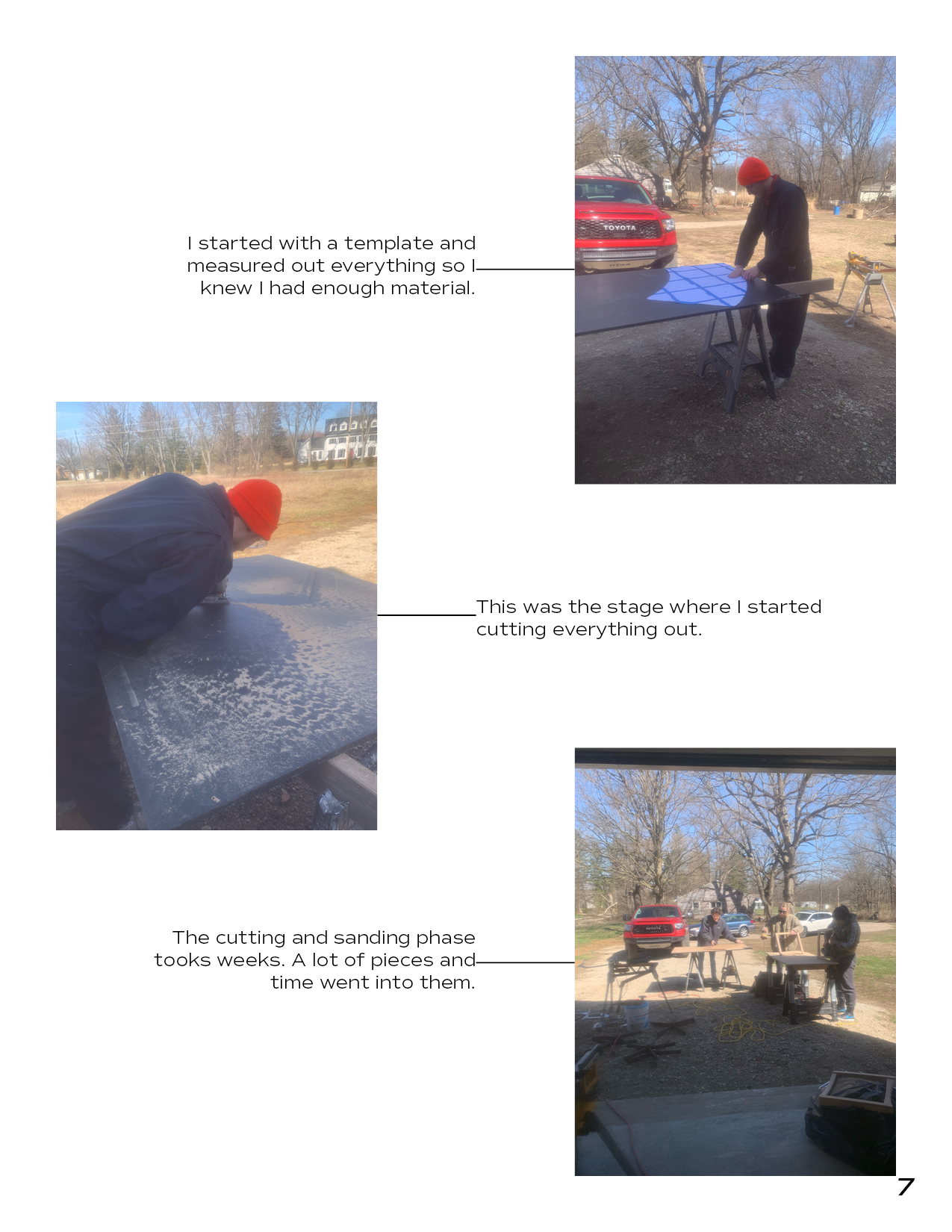

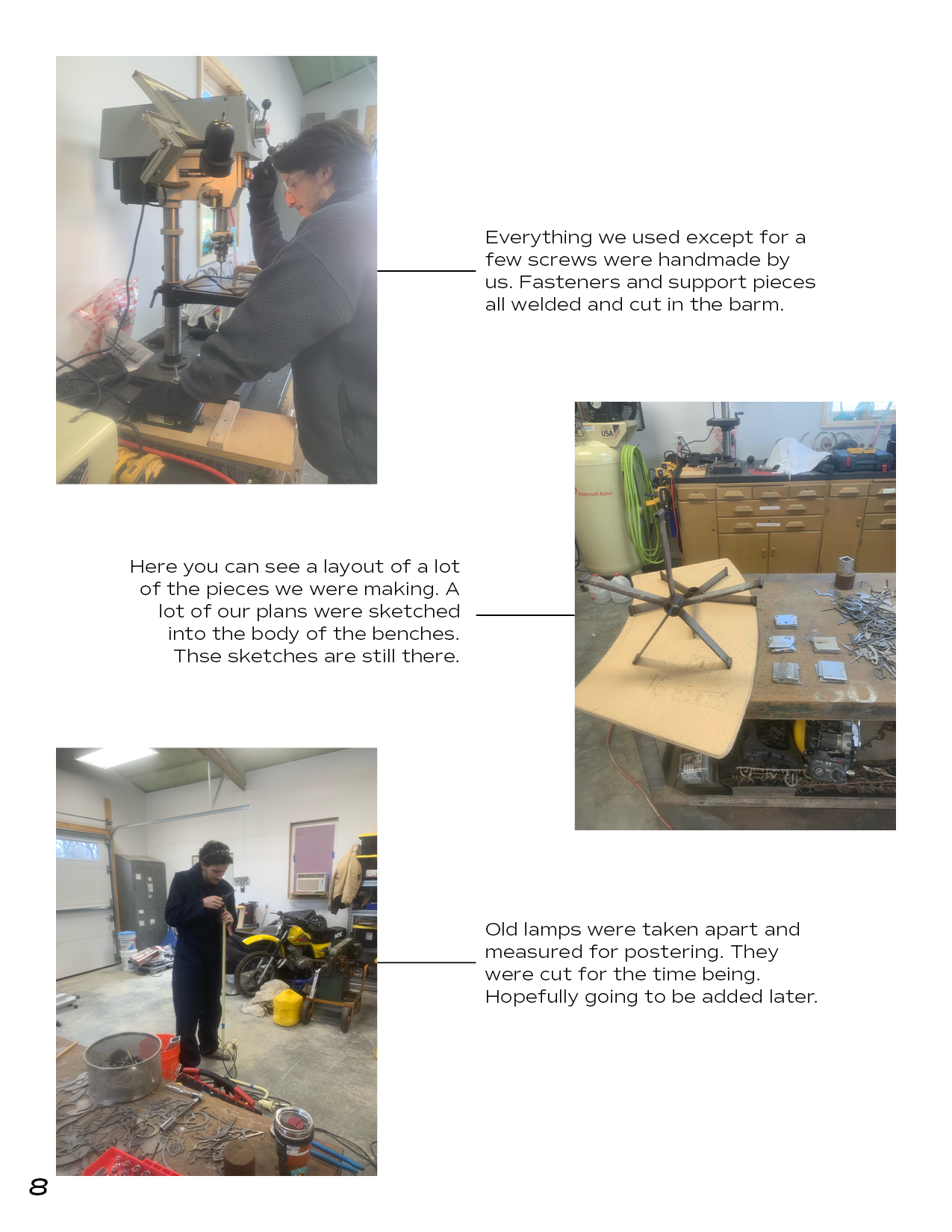

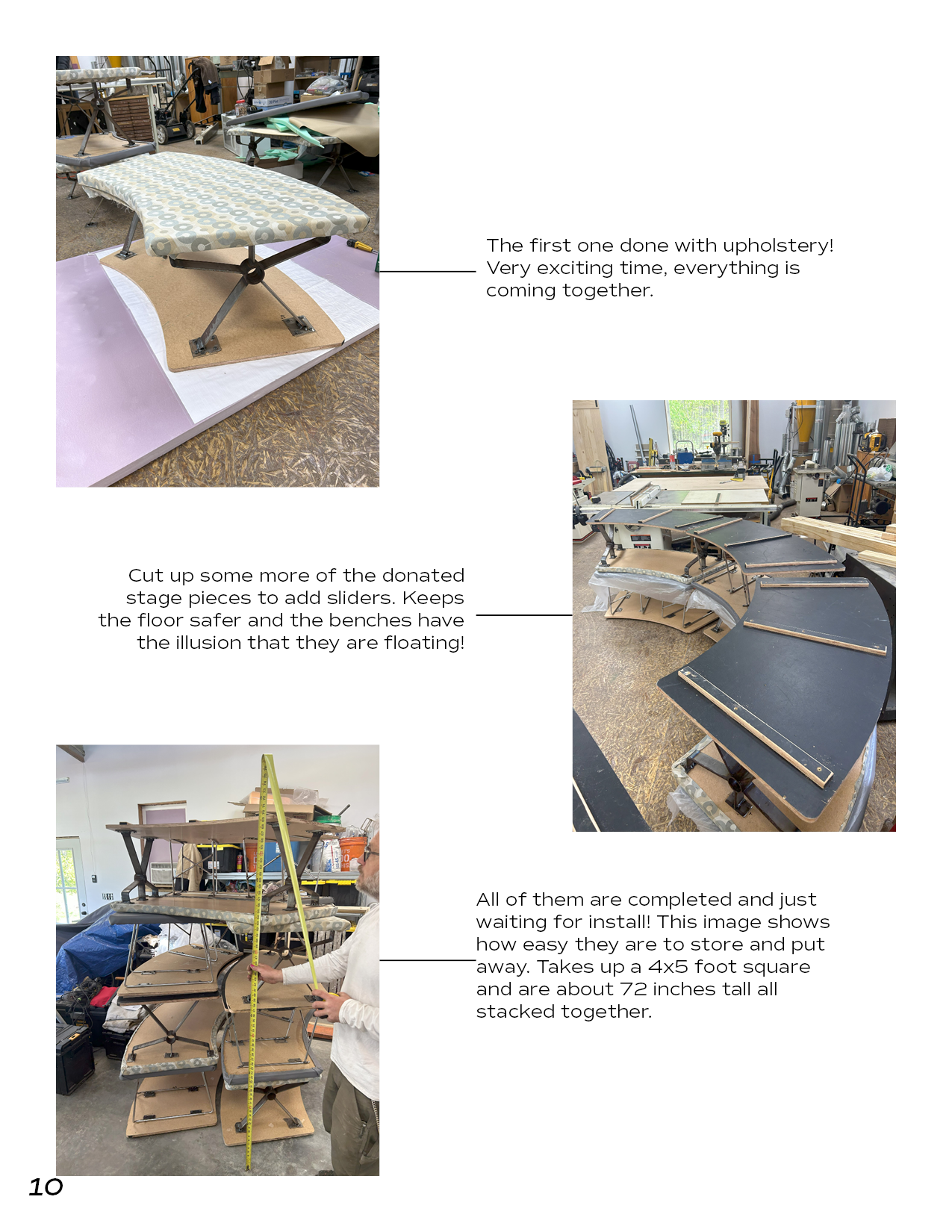

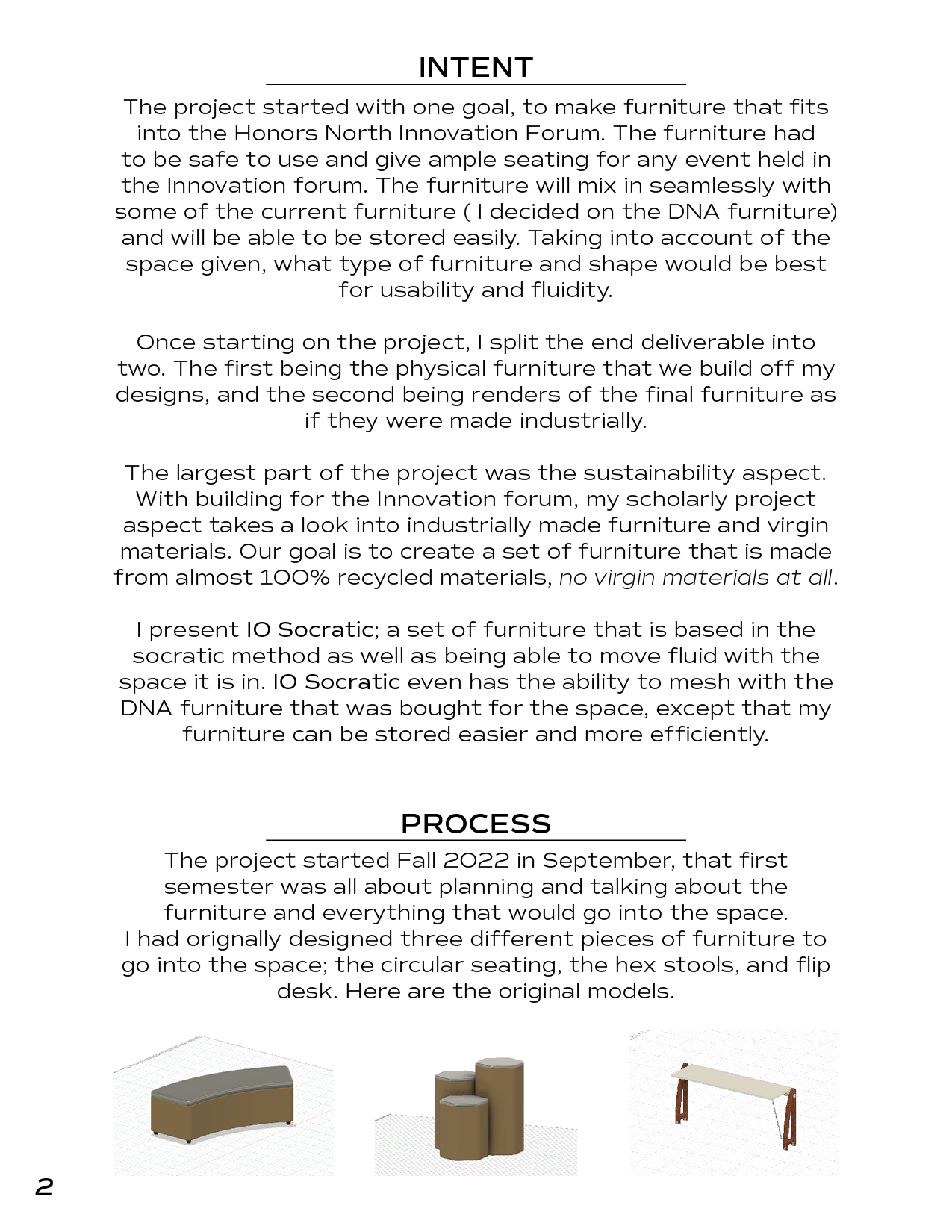

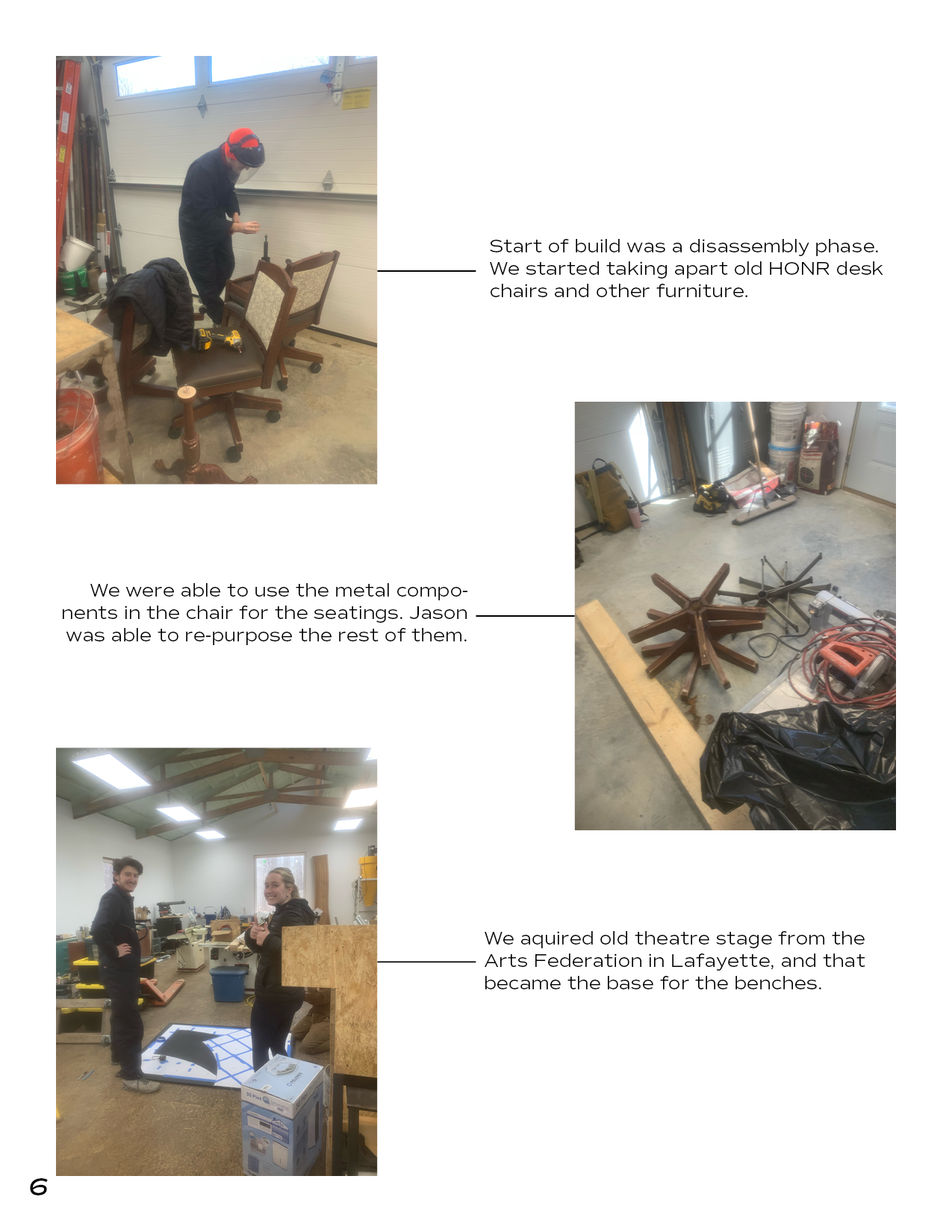

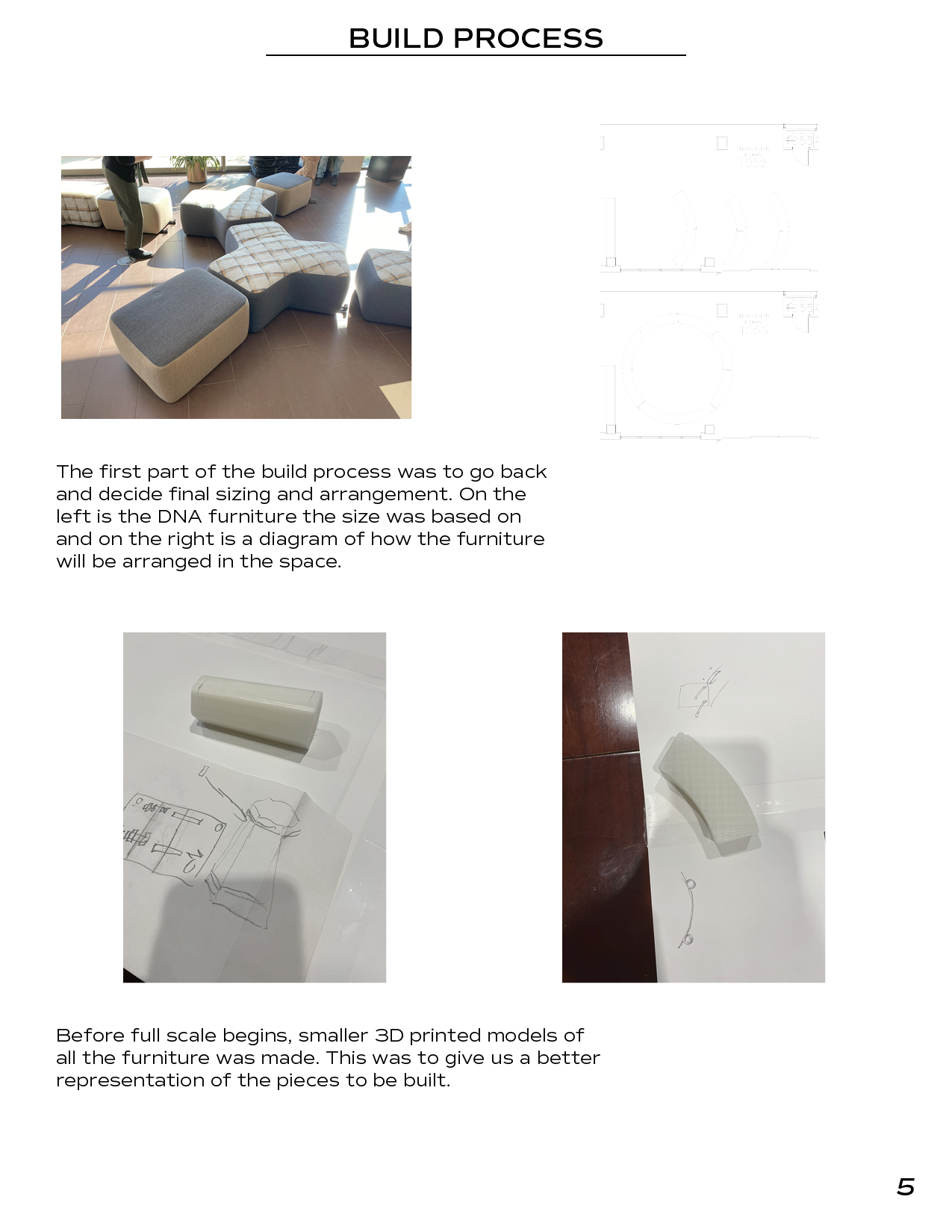

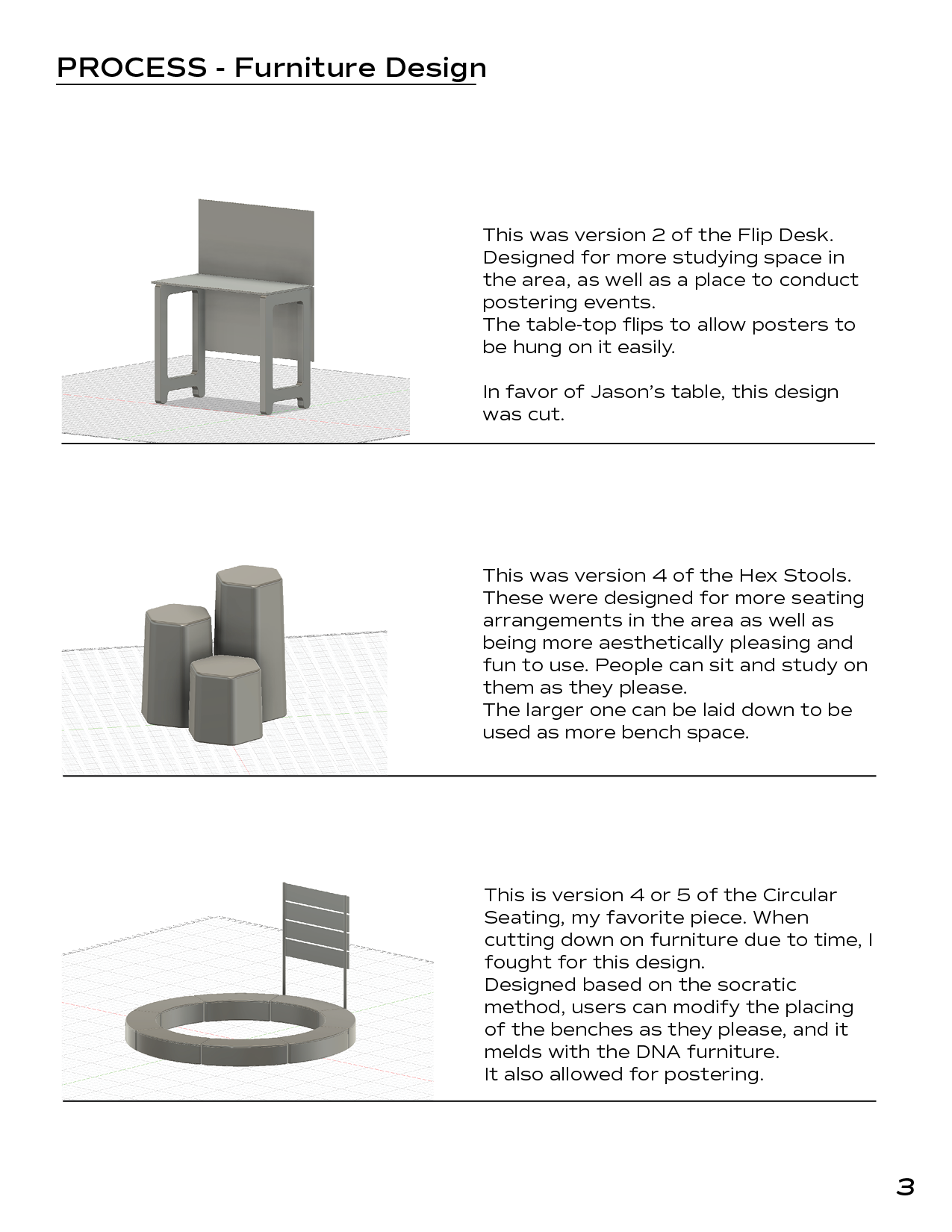

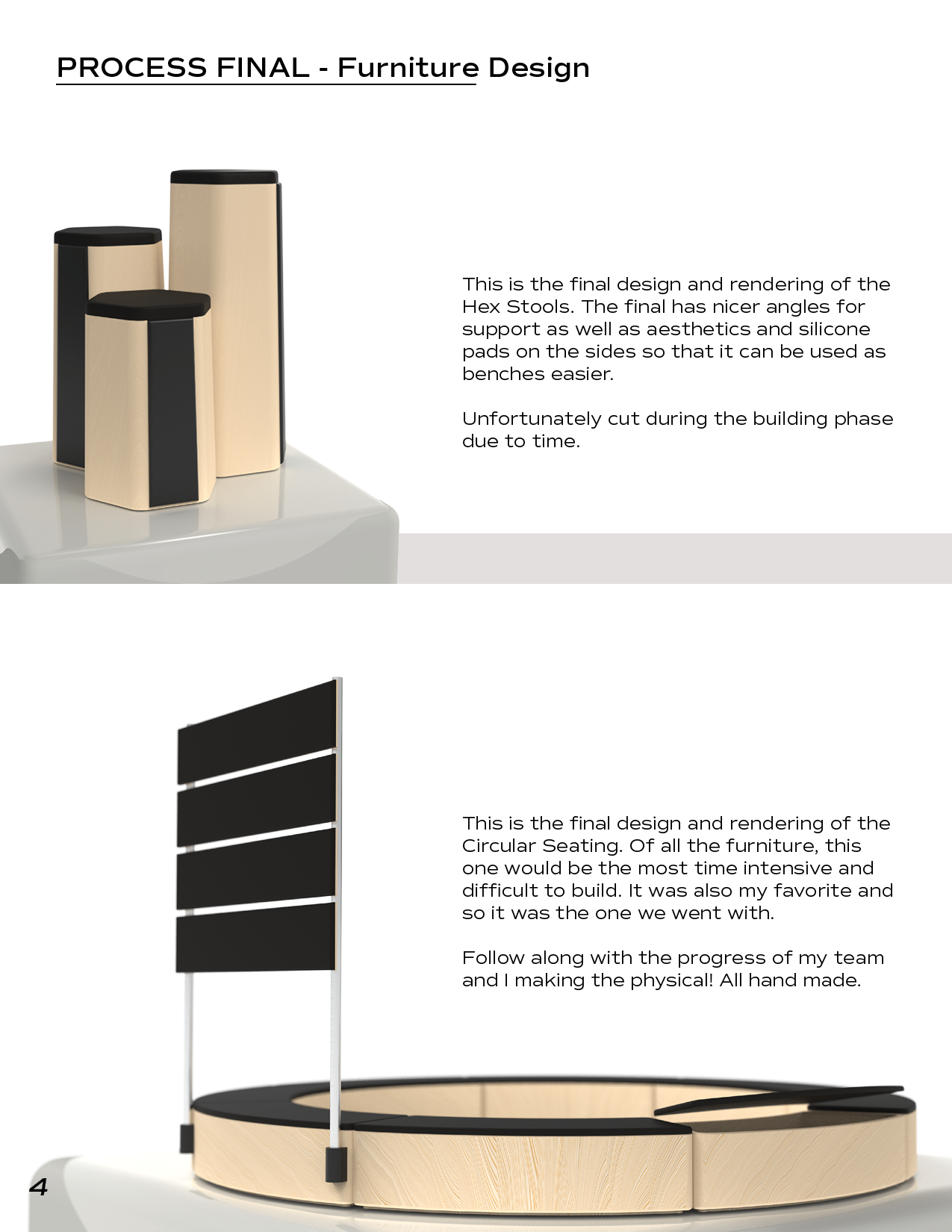

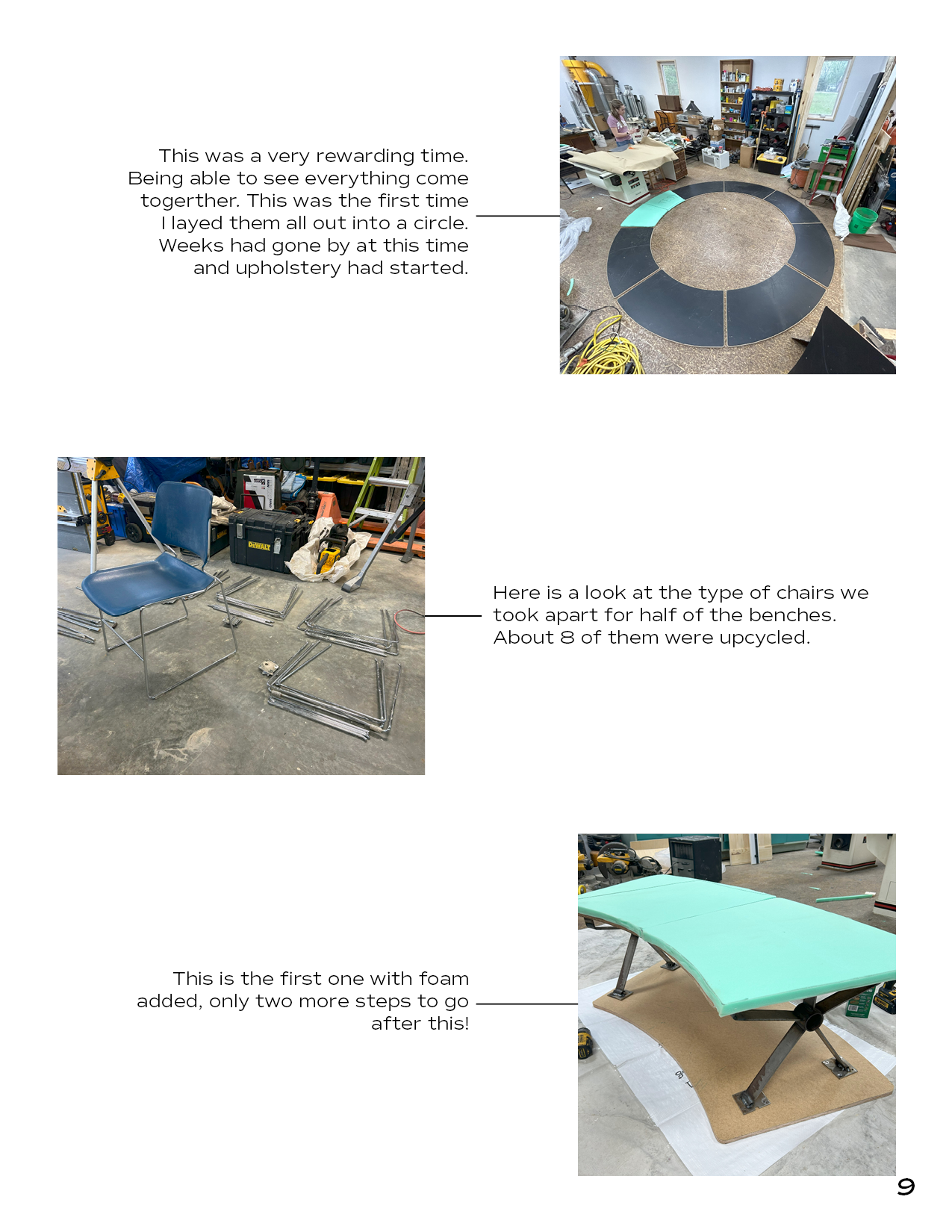

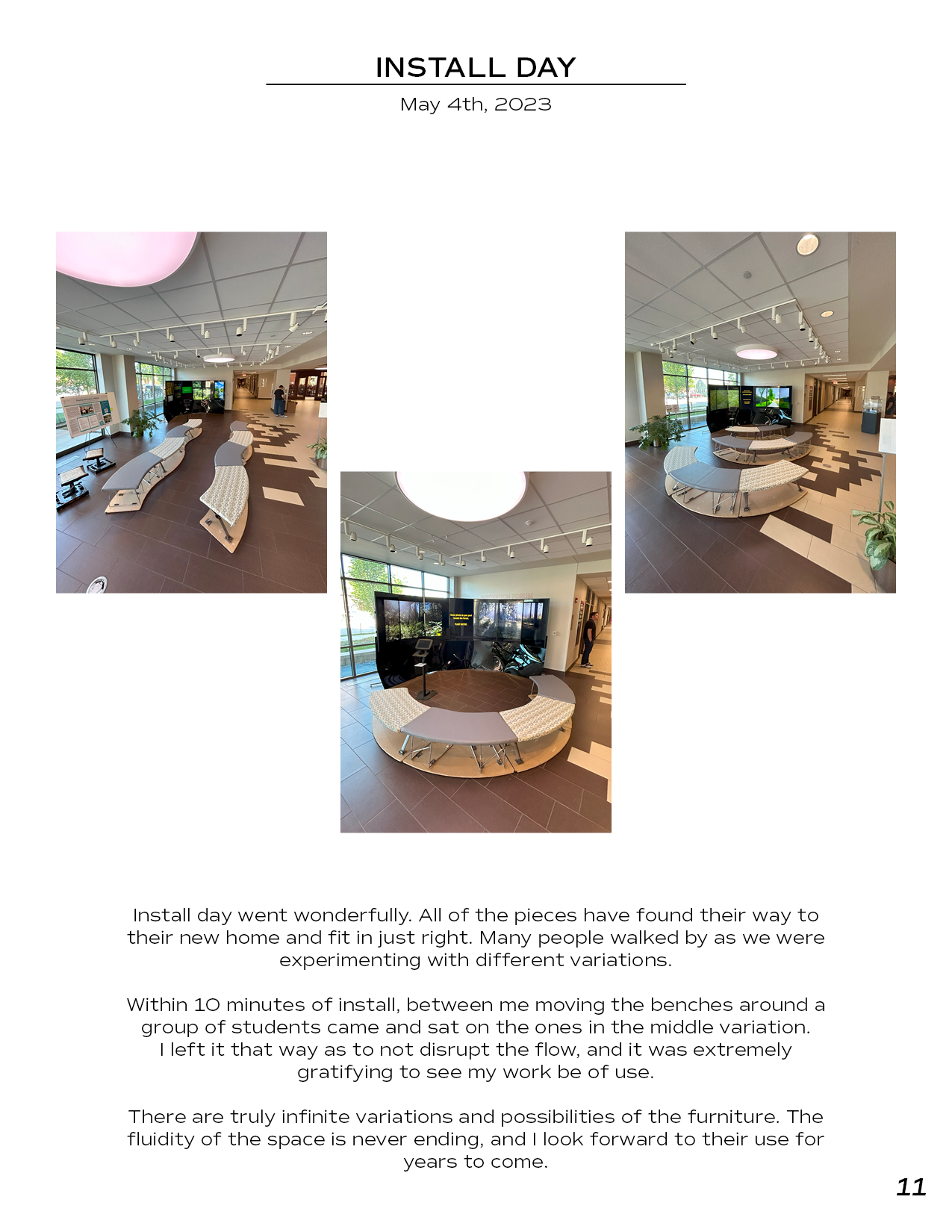

Below is the initial project report!
